Advanced Optical Simulation

The Power of Comprehensive Simulation

Bielcrystal Innovation Technology possesses a full suite of microscopic simulation solutions, from wave optics to Maxwell solvers. This enables us to quantitatively evaluate optical component performance with exceptional accuracy, predicting how light behaves from macro to nano scales.

Wave Optics Simulation

Our wave optics simulation algorithms, based on the Rayleigh-Sommerfeld formula and Huygens-Fresnel principle, model light behavior at the micron scale and its propagation results in free space. This is crucial for understanding diffraction, interference, and beam characteristics in larger optical systems.

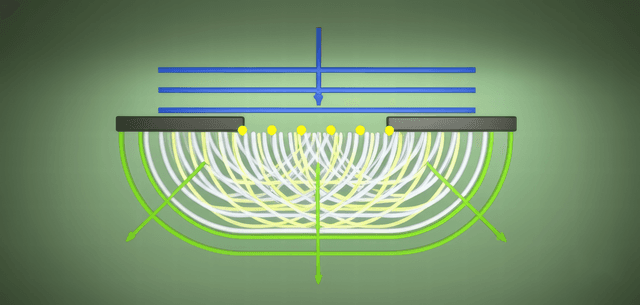

Wave optics simulation showing light propagation and interference patterns.

Maxwell Solvers for Nanostructures

For sub-wavelength (nanoscale) structures, we employ RCWA (Rigorous Coupled-Wave Analysis) and FDTD (Finite-Difference Time-Domain) algorithms to solve Maxwell's equations. These methods are indispensable for designing and optimizing complex nanophotonic devices and structured optical elements, predicting their interaction with electromagnetic fields.

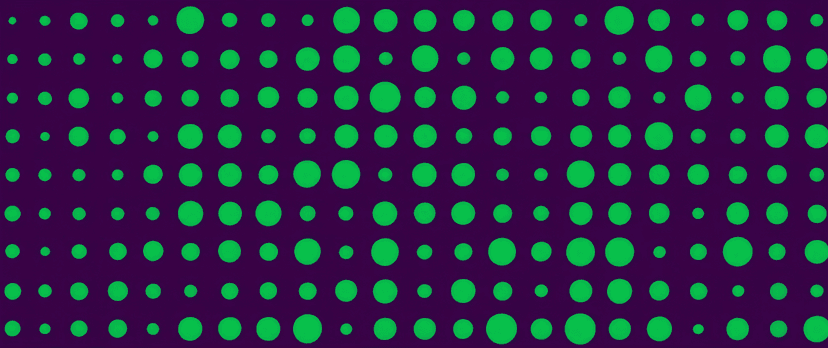

Detailed structural model of an engineered nanostructure for light manipulation.

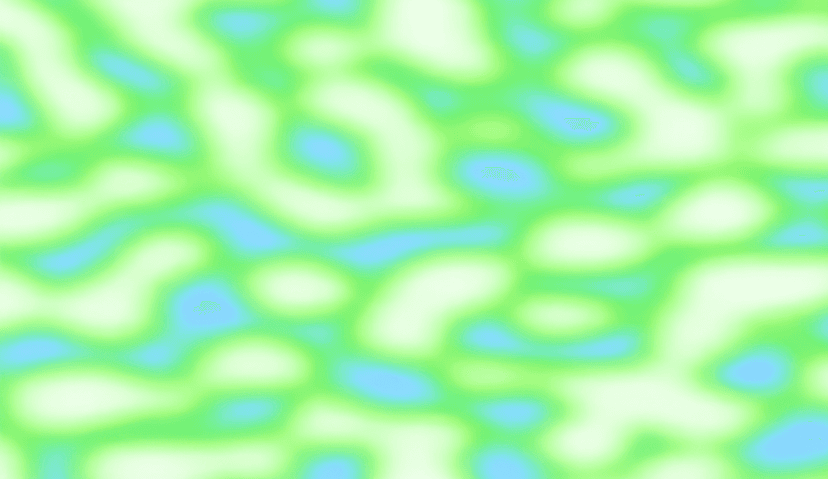

Simulated electric field distribution within a nanophotonic structure.

Example: Nanostructure-based Laser Beam Splitter

RCWA is utilized to simulate the electromagnetic field structure of a nanostructured element designed as a laser beam splitter. The simulation accurately predicts how the nanostructured surface manipulates the incoming laser beam, splitting it into multiple beams with defined angles and intensities. The subsequent free-space propagation of these beams is then modeled to verify the far-field performance.

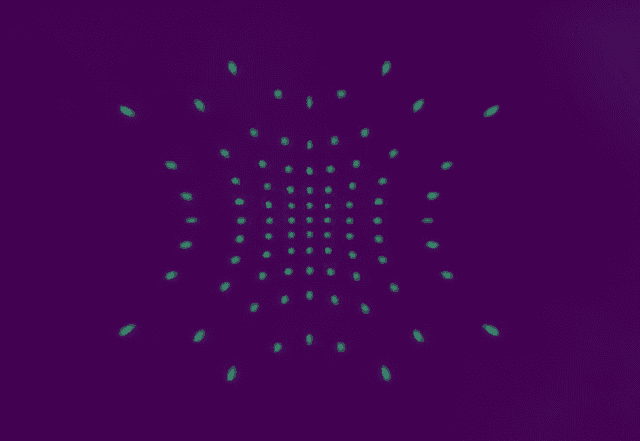

Simulation of a nanostructure-based laser beam splitter showing field distribution and far-field pattern.

Key Advantages of Our Simulation Suite

• Precision & Accuracy: High-fidelity models ensure precise performance prediction across diverse optical phenomena.
• Accelerated Innovation: Rapidly iterate on designs and significantly reduce the need for costly physical prototyping.
• Deep System Insight: Gain a profound understanding of light interaction, field distributions, and energy flow within your optical system.
• Versatile Customization: Tailor simulations to specific materials, complex geometries, and varying environmental conditions.
• Multi-Scale Capability: Seamlessly model interactions from macroscopic optical elements down to nanoscale features.
